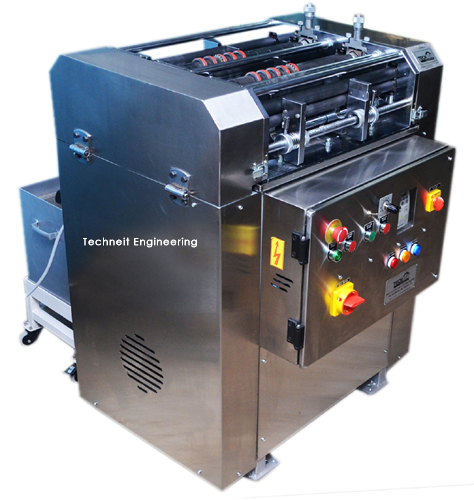

Multi Cutter PCB V-Scoring Machine For Aluminum and Normal CCL

Techneit Engineering Make Multi Cutter V-Scoring Machine For Aluminum and Normal CCL


Has been developed keeping in the mind Specialised Need for Tubelite MC PCB and Long Length PCB In the Mind Lowering the process time it can process the PCB In single Pass.

Design Highlights

  • Through Gear Drive Cutter Shafts can easily separated for Setting Purpose.
  • Easy and Fast Setting of V-Scoring Cutters for various width and Depths.
  • Fast change over from Normal CCL to Metal CCL.
  • Harden Ground and Hard chrome Plated Cutter Shaft for Long Life working.
  • Nickel chrome Plated Side and Guide plate for Rust Proof working.
  • Stainless Steel 304 Sheet and heavy MS Fabrication.
  • Cutter Shaft Setting Stand with Storage for Distance for Brass Shims.
  • Roller Conveyer Direct Reversing Arrangement.
  • All Electrical items are Siemens and Equivalent make.

Standard Accessories

  • Shaft Mounting Setting Stand -1nos
  • Cutters Bearings with Ring -10Nos
  • Carbide51*25*2.4*30 Deg
  • Setting Distance Pieces AND SS SHIMS-200NosApporx
  • Suitable Spanners and Allen Keys
  • Coolant Tank and reputed make Coolant Pump

Optional Accessories

  • Cutters
  • Cutter Support Bearings
  • Cutters shafts



Operation Semi-Automatic
Power 440V,50Hz,3 Phase
Cutters Type 51X25X2.4-30Deg
Cutter Shaft Drive 2.2 Kw MotorThrough Timer Belt and 3 Timer Pulley
Conveyor Rollers Nitrile Rubber, 12Nos, Drive Through VFD
Roller Speed 0-6 Mtrs/Min
Cutters 4 Min-24 Max
Scoring Pitch 5 mm-450mm
Min Panel Length 35 mm
Max. Thickness 0.8 to 3.2
Cutter Cooling Water Soluble oil Through Pump
Body Structure SS304 and MS Plate Profile
Weight 300 kg
Overall Size 850*1030*1050
Protection Glass+SS Guard for Cutter Housings

The specifications may change without prior notice due to continuous improvement programs.
