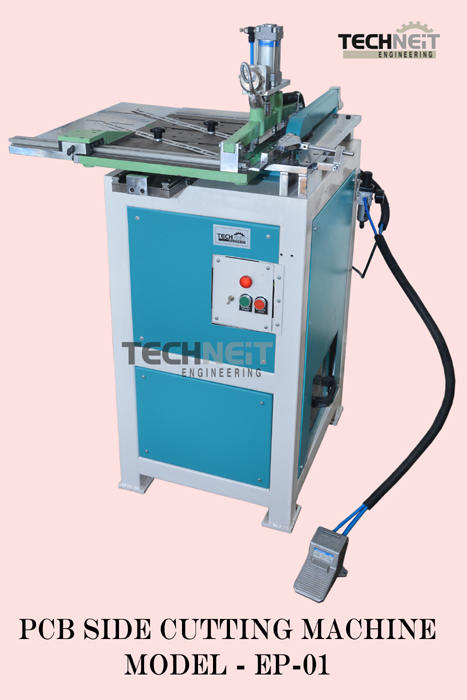

PCB Edge Profiling Machine / PCB Cutting Machine


For Materials Normal CCL like FR1, FR4 and Glass Epoxy Boards

Design Highlights

  • Pnumatic Clamping.
  • Pin Registration Type.
  • Easy and Fast Setting of various Sizes.
  • Fast change over from one setting to another.
  • Harden Ground Cutter Shaft for Long Life working.
  • Nickel chrome Plated Side and Guide plate for Rust Proof working.
  • Heavy Sheet Metal fabrication for sturdy working.
  • Timer Belt And Pulley arrangement for Positive Drive.
  • Liner Bearing and Bars.
  • LED Lamp for Clear View.

Standard Accessories

  • Protection Cutter Cover- With Sensor
  • Cutters-170mmX25 mm ID X 2.4mm Thk
  • Electro Plated Diamond Wheel
  • Scale Marking
  • Required Allen key and Spanner Set

Optional Accessories

  • Cutters

See Video of PCB Edge Profiling Machine EP 01



Operation Semi-Automatic
Power 440V,50Hz,3 Phase/1Phase
Cutters Type 170mmX25 ID X2.4mm
Cutter Shaft Drive 0.75 Kw Motor
Roller Speed 0-6 Mtrs/Min
Feed Manual
Max. Thickness 0.8 to 3.2
Body Structure MS Plate Profile and Sheet
Weight 150 kg
Overall Size 1150*425*1100
Working Area 600*500

The specifications may change without prior notice due to continuous improvement programs.
