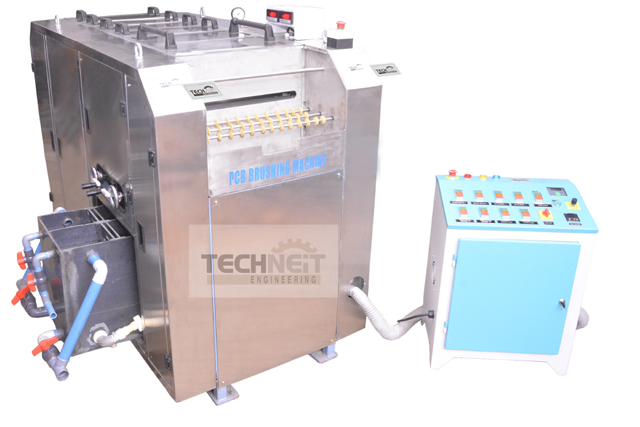

PCB Brushing Machine/Scrubbing Machine

Model-BM-04


Design Highlights


  • Solid Metal body with professionally designed
  • Simultaneous Brushing Washing and Squeezing, High Pressure Water rinse
  • High Pressure High Velocity Cold air Turbine Blower PCB Drying
  • Warm Air Blowing Drying
  • 18 Inch Brushes With oscillations
  • Separate Water Tank
  • Transparent Top lids
  • Double Side parallel Brush Adjustment of the brush For Mutual parallel Setting
  • SS 3016 Main shaft
  • Branded Motors and Electrical Parts
  • Chrome Plated Internal Part for rush Proof working
  • Machine can accommodate various size brushes
  • Canopy Type Control panel
  • PVA Roller for Squeezing
  • Digital Temperature control
  • Digital Conveyor Speed Control with reversing arrangement

Standard Accessories


  • Spanner and Allen key Set

Optional Accessories


  • Nylon Brush


See Video of PCB Brushing Machine BM 04



Model-BM-04


Specifications


Operation Semi-Automatic
Power 440 ,50Hz,Three Phase
Working Width 460
Oscillation Stroke 14 mm(7+7)
Min/Max Board Size 100/450
Brush Dimension 125x460x50.8 mm-2 Nos (Top & Bottom)
Brushing Speed 1440 RPM
Oscillation Frequency 150 Storke/Min
Main Rollers Nitrile
Sponge Rollers PVA
Roller Drive 1 KW With VFD
Roller Speed 0-2 Mtrs/Min(6 Mtrs/Min)
Max. Thickness 0.3 to 5
Body Structure SS304 Stainless Steel/Heavy MS Body
Weight 1250kg (Apporx)
Overall Size 1850*2000*1200
Cold Air High Pressure Air Knife
Hot Air Through Heater Chamber
Heaters 2 KW
Power Consumption 10 Kw
Temperature Controller Digital
Total Motor+Pumps 10 Nos

*The specifications may change without prior notice due to continuous improvement programs.
