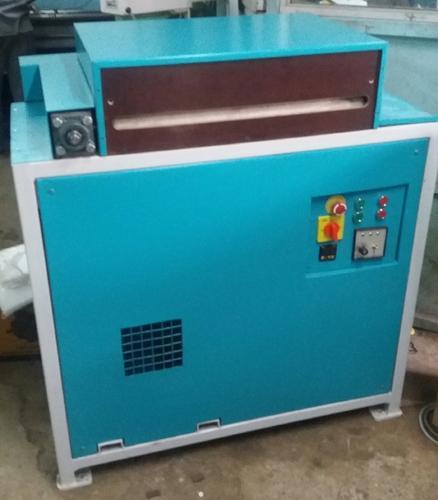

PCB Drier


Techneit Engineering Make High Pressure Turbo Blower Drier for Printed Circuit Boards

Design Highlights

  • Fast Warm Up Time.
  • High Velocity and High Pressure Turbo Blower for Removal of Water from Holes as well as V- Groves and Slots.
  • Space Saving.
  • 12 NosDrying Rollers.
  • 5 Nos Air Knife from Top and Bottom for Over All Effect.
  • 3 Kw Heaters for Faster Warm Up.
  • Internal Parts SS 304 And Plated for rust Proof condition.
  • Digital Temperature Controller.
  • Digital Drive for Speed Control of Rollers.
  • 600 mm Width for Higher Output.

Standard Accessories

  • 3 Mtrs Cable.

Optional Accessories

  • Work Tables.



Operation Semi-Automatic
Power 230V,50Hz,Single Phase
Air Blower 2 Hp Turbo Blower
Roller Drive Motor 0.37 Kw PMDC Motor
Conveyor Rollers Neoprene Rubber, 12Nos Through PMDC Drive
Roller Speed 0-6 Mtrs/Min
Damping Cloth Towel squeeze
Minimum PCB Width 80 mm
Max PCB Width 600 mm
Max. Thickness 0.8 to 3.2
Cutter Cooling Not Applicable
Body Structure MS Plate Profile and Sheet
Weight 150 kg
Overall Size 1150*425*1100

The specifications may change without prior notice due to continuous improvement programs.
