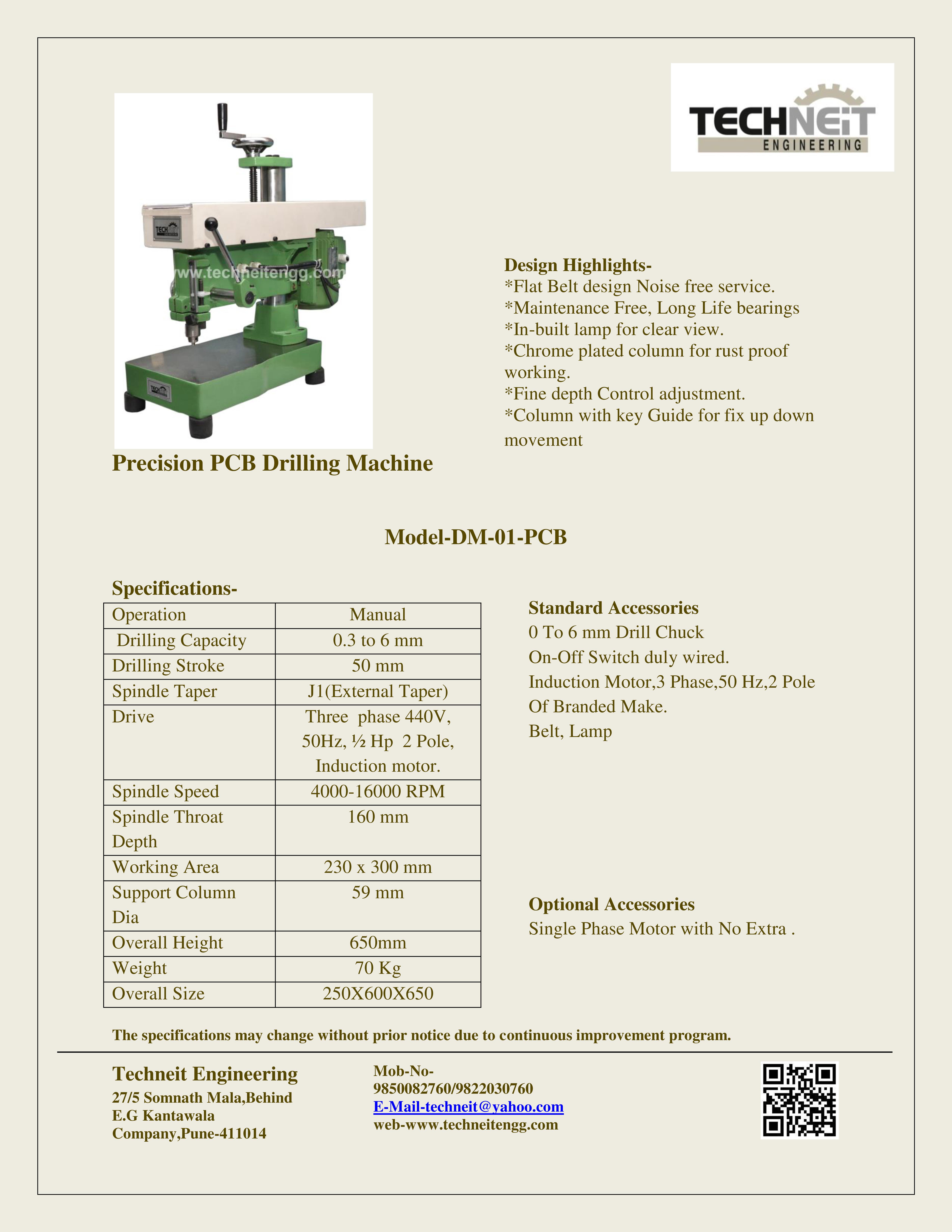

PCB Drilling Machine


Design Highlights

  • Flat Belt design Noise free service.
  • Maintenance Free, Long Life bearings.
  • In-built lamp for clear view.
  • Chrome plated column for rust proof working.
  • Fine depth Control adjustment.
  • Column with key Guide for fix up down movement .

Standard Accessories

  • 0 To 6 mm Drill Chuck
  • On-Off Switch duly wired
  • Induction Motor,3 Phase,50 Hz,2 Pole Of Branded Make
  • Belt, Lamp

Optional Accessories

  • Single Phase Motor with No Extra

See Video of PCB Drilling Machine DM-01-PCB



Operation Manual
Drilling Capacity 0.3 to 6 mm
Drilling Stroke 50 mm
Spindle Taper J1(External Taper)
Drive Three phase 440V, 50Hz, ½ Hp 2 Pole, Induction motor
Spindle Speed 4000-16000 RPM
Spindle Throat Depth 160 mm
Working Area 230 x 300 mm
Spindle to Table 140 mm Max
Support Column Dia 59 mm
Overall Height 650mm
Weight 70 Kg
Overall Size 250X600X650

The specifications may change without prior notice due to continuous improvement programs.
