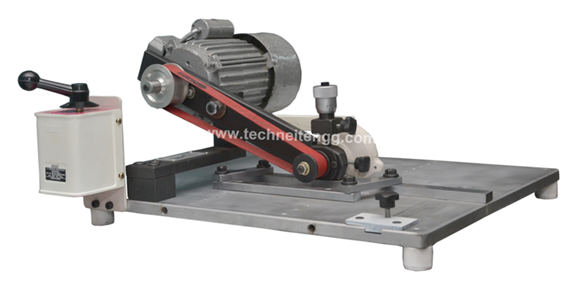

Single Cutter PCB V-Scoring Machine


Design Highlights

  • Easy and Fast Setting of V-Scoring Sizes for various width.
  • Fine Depth Setting.
  • Harden Ground and Hard chrome Plated Guide Plates for Long Life working.
  • Scale For fast setting.
  • Dull chrome plated and Ground Base plate.

Standard Accessories

  • Cutter - 1 Nos Carbide
  • Suitable Spanners and Allen Keys Set

Optional Accessories

  • Cutters
  • Cutter Support Bearings
  • Cutters shafts

Packing –Wooden Crate

See Video of Single Cutter PCB V-Scoring Machine



Operation Manual
Power 230V,50Hz,Single Phase
Cutters Type 75X25x1.2*15 Deg
Cutter Shaft Drive 0.25 Kw Motor
Cutter Speed 6000 RPM
Cutters 1 Nos
Max. Thickness 0.8 to 3.2
Weight 35 kg
Table Size 450*500
Overall Size 450*500*300

The specifications may change without prior notice due to continuous improvement programs.
