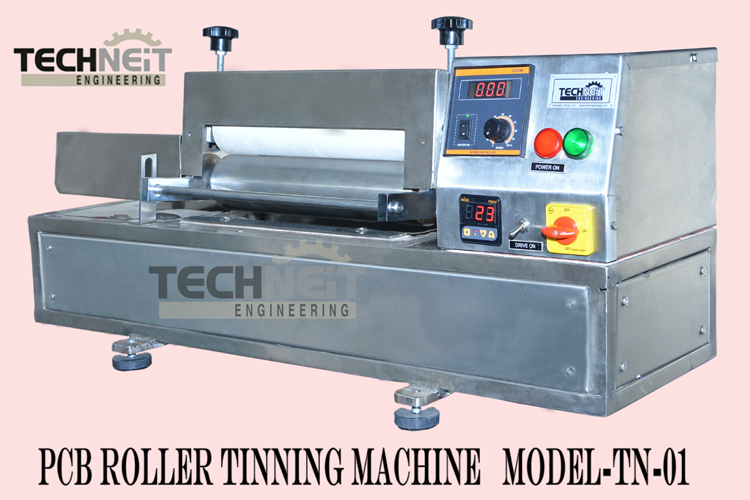

PCB Roller Tinning Machine


For Materials Normal CCL like FR1, FR4 and Glass Epoxy Boards

Design Highlights

  • Easy and Fast Setting of various Sizes.
  • SS304 Stain Less steel body.
  • Silicon Roller With SS Spindle.
  • Branded Geared PMDC Drive Motor.
  • Nickel chrome Plated Side and Guide plate for Rust Proof working.
  • Heavy Sheet Metal fabrication for sturdy working.
  • Digital Temperature control.
  • Digital Speed Control.
  • 1500 Watt Heaters for Fast Melting Start Up Time.

Standard Accessories

  • SS Cover

Optional Accessories

  • Tin Bars

See Video of PCB Roller Tinning Machine TM 01



Operation Semi-Automatic
Power 230V,50Hz,Single Phase
Rollers Silicon+Steel
Roller Drive 0.5 KW
Roller Speed 0-6 Mtrs/Min
Feed Manual
Max. Thickness 0.8 to 3.2
Body Structure SS304 Stain Less Steel
Weight 38 kg
Overall Size 850*300*325

The specifications may change without prior notice due to continuous improvement programs.
