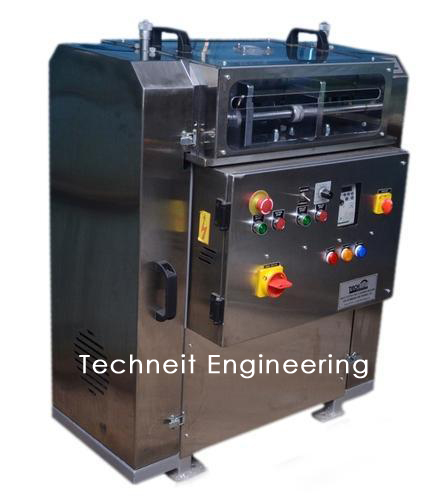

Multi Cutter PCB V-Scoring Machine For Aluminum and Normal CCL

MCGM-01-AL +

Techneit Engineering Make Multi Cutter V-Scoring Machine For Aluminum and Normal CCL

Has been developed keeping the Need for Multi Utility Machine with Quality, Cost effectiveness and Precision in the mind.

Design Highlights

  • Through Gear Drive Cutter Shafts can easily separated for Setting Purpose.
  • Easy and Fast Setting of V-Scoring Cutters for various width and Depths.
  • Fast change over from Normal CCL to Metal CCL.
  • Harden Ground and Hard chrome Plated Cutter Shaft for Long Life working.
  • Nickel chrome Plated Side and Guide plate for Rust Proof working.
  • Stainless Steel 304 Sheet and heavy MS Fabrication.
  • Cutter Shaft Setting Stand with Storage for Distance for Brass Shims.
  • Roller Conveyer Direct Reversing Arrangement.
  • All Electrical items are Siemens and Equivalent make.

Standard Accessories

  • Shaft Mounting Setting Stand -1nos
  • Cutters Bearings with Ring -10Nos
  • Carbide51*25*2.4*30 Deg
  • Setting Distance Pieces Total -200 Nos Apporx
  • SSShims-Included
  • Suitable Spanners and Allen Keys
  • Coolant Tank and reputed make Coolant Pump

Optional Accessories

  • Cutters
  • Cutter Support Bearings
  • Cutters shafts

See Video of Multi Cutter PCB V-Scoring Machine MCGM-01-AL +

MCGM-01-AL +


Operation Semi-Automatic
Power 440V,50Hz,3 Phase
Cutter Shaft Drive 1.5 Kw Motor Through Timer Belt and Timer Pulley
Conveyor Rollers Nitrile Rubber, 8 Nos, Drive Through VFD
Roller Speed 0-6 Mtrs/Min
Cutters 2 Min-12 Max
Scoring Pitch 5 mm-450mm
Min Panel Length 35 mm
Max. Thickness 0.8 to 3.2
Cutter Cooling Water Soluble oil Through Pump
Body Structure SS304 and MS Plate Profile
Weight 210 kg
Overall Size 850*850*1030
Protection Glass+SS Guard for Cutter Housings

The specifications may change without prior notice due to continuous improvement programs.
