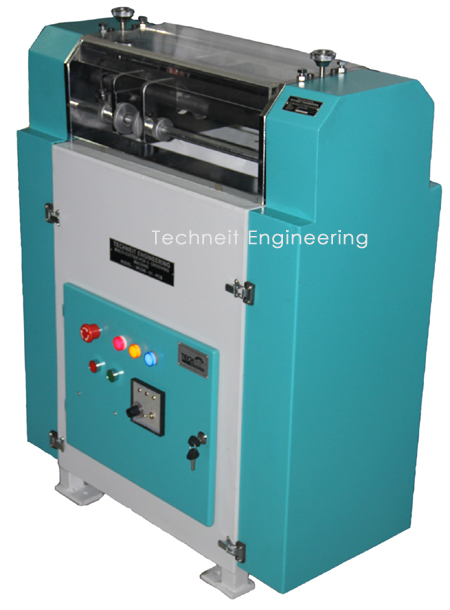

Multi Cutter PCB V-Scoring Machine For Normal CCL

Model No : MCGM-NR(01)

Techneit Engineering Make Multi Cutter V-Scoring Machine Normal CCL like FR1, FR4 and Glass Epoxy Boards

Design Highlights

  • Easy and Fast Setting of V-Scoring Cutters for various width and Depths.
  • Fast change over from one setting to another.
  • Harden Ground and Hard chrome Plated Cutter Shaft for Long Life working.
  • Nickel chrome Plated Side and Guide plate for Rust Proof working.
  • Heavy Sheet Metal fabrication for sturdy working.

Standard Accessories

  • Shaft Mounting Bracket -2 nos
  • Cutters-2 Nos HSS 51*25*2.4*30 Deg
  • Support Bearings-2 Nos
  • Setting Distance Pieces Total -96 Nos
  • Brass Shims-90 Nos
  • Tool Box with Suitable Spanners and Allen Keys

Optional Accessories

  • Cutters
  • Cutter Support Bearings
  • Cutters shafts

See Video of PCB V-scoring Machine - MCGM-NR(01)

Model No : MCGM-NR(01)


Operation Semi-Automatic
Power 440V,50Hz,3 Phase/1Phase
Cutters Type 51X25X2.4-30 Deg
Cutter Shaft Drive 0.75 Kw Motor
Conveyor Rollers Nitrile Rubber,4 Nos Through DC Drive
Roller Speed 0-6 Mtrs/Min
Cutters 1-6 Nos
Scoring Pitch 5 mm-450mm
Min Panel Length 35 mm
Max. Thickness 0.8 to 3.2
Cutter Cooling Not Applicable
Body Structure MS Plate Profile and Sheet
Weight 150 kg
Overall Size 850*425*1100

The specifications may change without prior notice due to continuous improvement programs.
